Coin Payout Unit Universal Hopper MKII & MKIV

This hopper (coin payout unit) combines new, modernest product characteristics with proved, multible tried technology. A fast and impeccable performance provides, that these hoppers also in the future, will hold steady, their leading position in the sector of leisure-, vending- and change-machines. In addition this hopper possesses by default, different carrier modes, to make a directly payout possible, by switching of the power supply or by logic- or impuls-control. The MKIV pays coins with a middle-hole out, too. Because of the modular design it is possible to place serveral hoppers side by side on closest space - that allows the pay out of coins with different nominal amount, concurrently or sequently.

Euro Info:
Small Coin 16.25-20.90mm x 1.00-3.1mm green chain 0,01-0,02-0,05-0,10 Euro
Standard Coin 21.01-30.00mm x 1.25-3.30mm red chain 0,20-0,50-1,0-2,0 Euro
Large Coin 30.01-31.50mm x 1.25-3.30mm red chain 5,00 CHF
Euro Specifical 19.00-26.40mm x 1.50-2.50mm yellow chain 0,05-0,10-0,20-0,50-1,0-2,0 Euro

Options connection plug:
Connector position Base plate options MKII or MKIV
Connection plug (green) opposite MKII = Rear (Opp)
Connector (green) on the same side = Front (Adj)
Connector position base plates options MKIII
Connection plug (black) opposite MKIII MKII = Rear (Opp)
Connector (black) on the same side = Front (Adj)
Important:
To choose the operating mode, the inputs must be switched, before power on the hopper !

Options:
Connector position Baseplate options MKIV connector (green) being opposite MKIV connector (green) at the same side

Hints:
If a MKII Hopper is replaced by the successor MK4, pay attention to the height of the hopper.
The MKIV Hopper is about 5 mm higher than the MKII

Protocol:
parallel (Standard)
stepper (Standard)
CC Talk (CC Talk)
Serial    (Serial)

Connection plug:

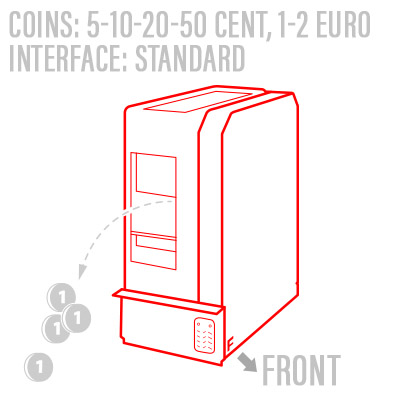

Adjacent (Adj) = Front (connector and coin outlet on the same side)
Opposite (Opp) = Rear (plug and coin exit on opposite side)
Capacity:
The approximate capacity of the MKIV hopper can be estimated by using the following formula: The capacity of the hopper (in coins) is equal to the volume of the hopper divided by the volume of one coin. The fill-volume of one hopper amounts to approx. 1.2 liter.

Security:
Saver 24V-DC mode. "Autoreverse" Function for prevention of coin blockages
Implemented shaker.
Double optical readout unit

Technical specifications:
Power supply: Motor 24VDC Waviness: +3V/-10V Max. 27VDC Min: 18 VDC
Power consumption: Operating: 0,5 Amp. Autoreverse: 1,0 Amp. Power off current during autoreverse: 1,5 Amp. Power on current: 2,0 Amp. Stand-by: 0,02 Amp. Temperature range: 0-50°C
Exits: Open Collector NPN "Reset" Input.

Dimensions:
High: 284,5 mm width: 126,0 mm deep: 244,5 mm
Weight: 2,3 kg
More technical information and datas you will find in the manual.
